Project 01: Configure Small Network & CCTV Using Class C IP – Hotel Setup Guide

In this project, we designed and implemented a complete server-based network infrastructure for a hotel located on the 10th floor. The hotel owner required a secure digital setup, full CCTV coverage, and role-based internet access across departments. The system had to support both staff operations and guest services efficiently.

Project Requirements:

  • Full wireless network coverage across the hotel
  • Secure Wi-Fi login for guests using a password (shared only by hotel staff)
  • Staff login with unique user ID and password for each system
  • Internet access control per department

  • Staff: Only email and hotel inventory access
  • HR/Admin: Full internet access
  • Accounts: Limited, restricted internet access
  • Complete IP-based CCTV monitoring across all areas
  • Redundant internet connectivity for uninterrupted service

Planning & Device List:

  • Desktop and laptop systems in each department
  • IP CCTV cameras for floor-to-floor surveillance
  • Wireless access points for building-wide Wi-Fi
  • Server and storage setup for authentication and video recording
  • Dual internet connections with automated failover
  • Network switches, structured cabling, and power protection units

Network Infrastructure Overview:

  • Cable Laying & Layout
  • Structured cabling with clear labeling
  • Proper placement of network points for departments and CCTV units
  • Central rack for organizing equipment
  • Dual Internet Setup
  • Two internet lines connected through a firewall
  • Failover configuration to ensure continuous connectivity
  • Wi-Fi Configuration
  • Wireless coverage across all floors
  • Secure SSID setup for guests
  • Staff connected via authenticated domain login
  • CCTV Integration
  • Cameras configured with Class C private IPs (e.g., 192.168.1.x)
  • Centralized recording through a video management system
  • Remote viewing enabled through secure access

Server & Domain Setup:

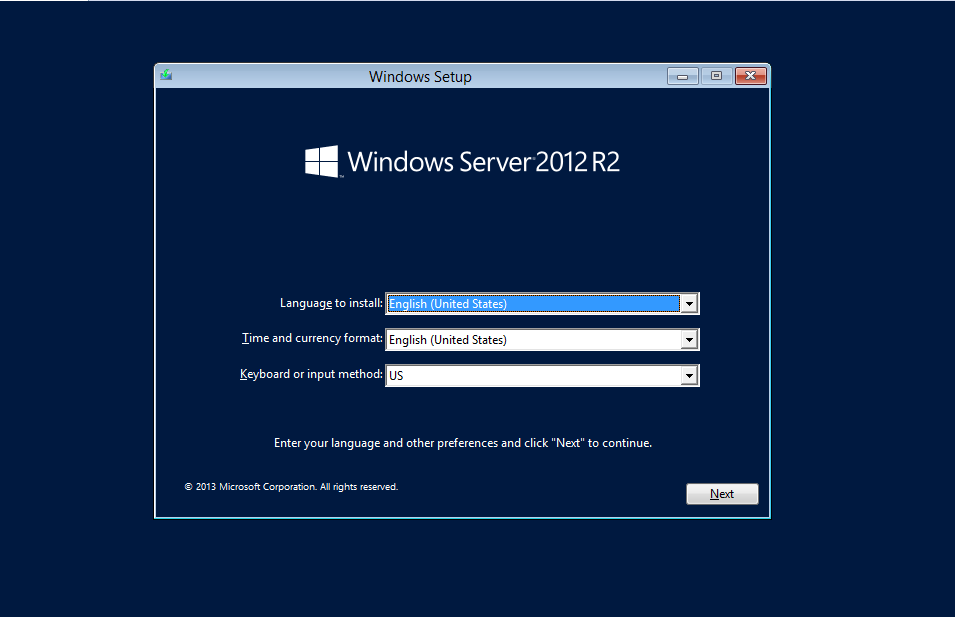

 Step 1: Install the Operating System
Install a licensed server OS

  • Follow standard installation steps

 Step 2: Set System Time & Region
  • Ensure the correct time zone for logs and system accuracy

Step 3: Assign Static IP
Example: 192.168.1.10

Set appropriate subnet, gateway, and DNS values

Step 4: Add Server Roles Configure essential services:

  • User authentication
  • File and print sharing
  • DHCP (if needed)
  • Group policy management

Step 5: Setup Active Directory Create a local domain (e.g., hotel.local)

  • Add departments as Organizational Units
  • Create user accounts with unique permissions
  • Enforce login authentication for all systems

Step 6: Configure Reverse DNS (rDNS)
  • Improve internal name resolution and tracking

Internet Access Control:

  • Internet filtering rules applied per department
  • Only specific services allowed for general staff (e.g., email, internal apps)
  • HR/Admin with unrestricted access
  • Traffic monitoring and firewall logging enabled

 Final Outcome:

  • The hotel now runs on a secure, organized, and scalable digital infrastructure:
  • Reliable guest Wi-Fi access
  • Department-based user access control
  • Full building CCTV coverage
  • Centralized login system
  • Dual internet connections with automatic failover






















⚠️ Disclaimer
This guide is for educational purposes only. Always consult a certified network professional before applying configurations. We are not responsible for any damage, data loss, or issues arising from misconfiguration or improper setup.
